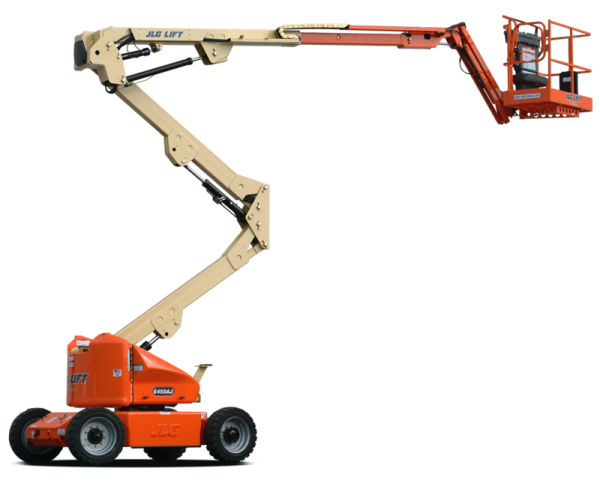

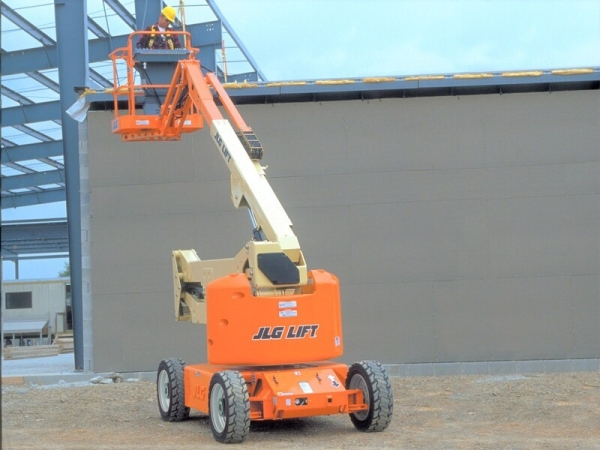

JLG E450AJ BOOMLIFT 15.5 METER
Key Specs
- Working Height: 15.72 m / 51.6 ft
- Working Outreach: 7.89 m / 25.9 ft
- Platform Capacity: 230 kg / 507.1 lb
- The choice of four models with working height up to 15.50 m and various options for increased versatility
- Standard Automatic Traction Control for enhanced terrain performance and increased manoeuvrability
- High-efficiency direct electric drive with longer duty cycles for increased productivity
- Zero emissions for environmentally-friendly equipment
Overview
|
Power Source |
Batteries | 8 x 6V, 370 A-h |
| Electrical System | 48 Volts DC | |
|
General Specifications |
Capacity - Hydraulic Reservoir | 20 L / 5.3 gal. |
| Machine Weight (CE & GOST) | 6670 kg / 14704.8 lb | |
| Maximum Ground Bearing Pressue | 7.60 Kg/cm2 | |
|
Performance Data |
Drive Speed - Platform Lowered | 5.20 km/h / 3.2 mph |
| Gradeability - 2WD | 30% | |
| Platform Capacity | 230 kg / 507.1 lb | |
| Swing | 360 Degrees | |
| Swing Type | Non-Continuous | |
| Turning Radius - Outside | 3.15 m / 10.3 ft | |
| Jib - Range of articulation | 144 Degrees | |
|
Dimensional Data |
Ground Clearance | 0.2 m / 8 in. |
| Machine Height | 2.01 m / 6.6 ft | |
| Machine Length | 6.45 m / 21.2 ft | |
| Platform Dimension A | 0.76 m / 2.5 ft | |
| Platform Dimension B | 1.52 m / 5 ft | |
| Tailswing | 0 m / 0 in. | |
| Tyre size | 240/55-17.5 Foam Filled | |
| Wheelbase | 2.01 m / 6.6 ft | |
|
Reach Specifications |
Working Height | 15.72 m / 51.6 ft |
| Working Outreach | 7.89 m / 25.9 ft | |
| Horizontal Jib Rotation | 0 Degrees | |
| Horizontal Outreach | 7.24 m / 23.8 ft |
