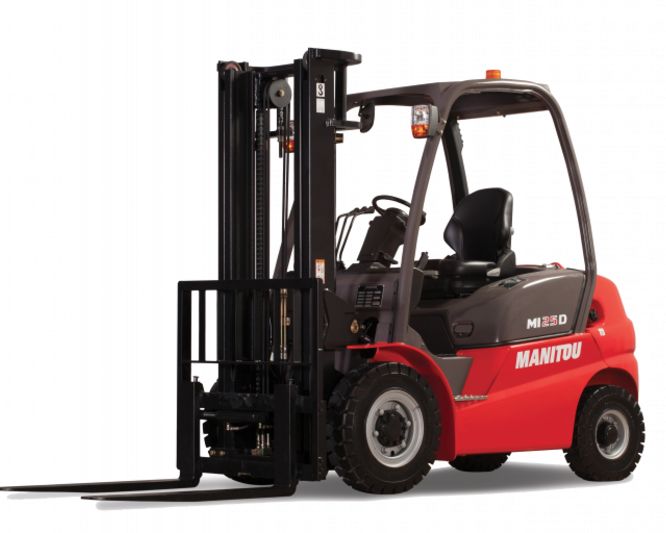

MANITOU MI 25D ROUGH TERRAIN FORKLIFT 2.5 TON
MANITOU MI 25D ROUGH TERRAIN FORKLIFT 2.5 TON ROUGH TERRAIN FORKLIFT  FORKLIFT, REACH TRUCK & TELEHANDLER Melaka, Penang, Malaysia, Selangor, KL, Ayer Keroh, Bukit Mertajam, PJ Rental, Services | LM EQUIPMENT SDN. BHD.
The MI 25 D forklift is designed to handle loads of up to 2.5 tonnes on solid travelling surfaces. The Yanmar diesel engine, the duplex mast as standard issue, the simple and robust design combine to ensure a quick return on investment, ease of upkeep and enhanced longevity.The easily accessible driver's cab comes equipped with an adjustable steering column and ergonomic control panel. The innovative design behind this diesel front loader and the optimised placement of the counterweight allow for excellent visibility so everyone benefits in terms of safety. Thanks to the inching pedal and the limit switch braking, approaching loads is smooth and precise.

Overview


Technical characteristics Power source Diesel
Operator type Seated
Max. capacity 2500 kg
Load centre of gravity 500 mm
Load distance, centre of drive axle to fork 465 mm
Wheelbase 1600 mm
Weight Service weight 4000 kg
Weight on front axle (laden) / rear axle (laden) 5735 kg / 765 kg
Weight on front axle (Unladen) / rear axle (Unladen) 1710 kg / 2290 kg
Wheels  Tyres type PPS
Dimensions of front wheels 7.00-12 12
Dimensions of rear wheels 6.00-9 10
Number of front wheels / rear wheels 02-Feb
Number of drive wheels 2
Front wheel gauge 965 mm
Rear wheel gauge 973 mm
Dimensions Tilt of Mast Forward (deg) / Backward (deg) 06-Dec
Height of overhead guard (cabin) 2115 mm
Seat height/stand height 1190 mm
Height of towing bar (coupling height) 360 mm
Overall length 3685 mm
Length to face of forks 2535 mm
Overall width 1155 mm
Overall width - Single wheels 1155 mm
Forks section / width / length 40 mm x 1220 mm / 1150 mm
Fork carriage ISO 2328 (class/form) A/B FEM 2A
Fork carriage width 1038 mm
Ground clearance below mast 115 mm
Ground clearance at centre of wheelbase 175 mm
Aisle width for 800 x 1200 pallet lengthways 4130 mm
Turning radius 2265 mm
Internal turning radius (over tyres) 145 m
Performance  Travel speed (laden / unladen) 18 km/h / 18.6 km/h
Lifting speed (laden / unladen) 0.47 m/s / 0.55 m/s
Lowering speed (laden / unladen) 0.5 m/s / 0.55 m/s
Drawbar pull (Laden / Unladen) 1730 daN / 1240 daN
Gradeability (laden / unladen) 20 % / 20 %
Service brake Hydraulic
Engine Engine brand / model Yanmar / 4TBV94L-BXPHZ
Engine power according to ISO 1585 35 kW
Rated speed 2400 rpm
Number of cylinders / Capacity of cylinders 4 - 3054 cm³
Fuel consumption according to VDI cycle 3.56 l/h
Miscellaneous  Working hydraulic pressure for attachments 160 Bar
Oil flow rate for attachments 69 l/min
Measured/guaranteed mean noise level at the ear of the operator < 84 dB(A)
